The X99 H9s is a solid board from Qiyida. Its headline feature is support for TPM 2.0 modules; in addition, it offers a sensible stock firmware, a server‑class chipset, and quad‑channel memory operation.

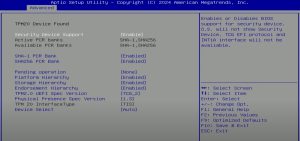

TPM 2.0 is a Trusted Platform Module responsible for hardware security and storing encryption keys. It’s required for installing Windows 11 and for some tools and anti‑cheat systems.
Specifications
| Model | Qiyida X99 H9s |
|---|---|
| Socket | LGA 2011-3 |
| Chipset | C612 |
| Supported Processors | Intel Core i7 (5000, 6000 series, Haswell-E/Broadwell-E) Intel Xeon E5-1600 v3/v4, E5-2600 v3/v4, E5-4600 v3/v4 (Haswell-EP/Broadwell-EP) |
| VRM Configuration | 3 phase (6 virtual via doublers) Total MOSFETs: 12 (6 high-side + 6 low-side) |
| Supported Memory | 4 x DDR4 DIMM (quad-channel) with ECC and non-ECC support Maximum capacity: 128 GB |
| Sleep Mode Support | No |
| Expansion Slots | 1 x PCI-e x16 (Gen 3.0) 1 x PCI-e x1 (Gen 2.0) |
| Storage | 4 x SATA 3.0 1 x M.2 (NVME, Gen 3.0 x4) 1 x M.2 (NVME/NGFF, Gen 3.0 x4) |
| Fan Connectors | 1 x CPU cooler (4pin) 1 x Case fan (3pin) 1 x VRM fan (2pin) |

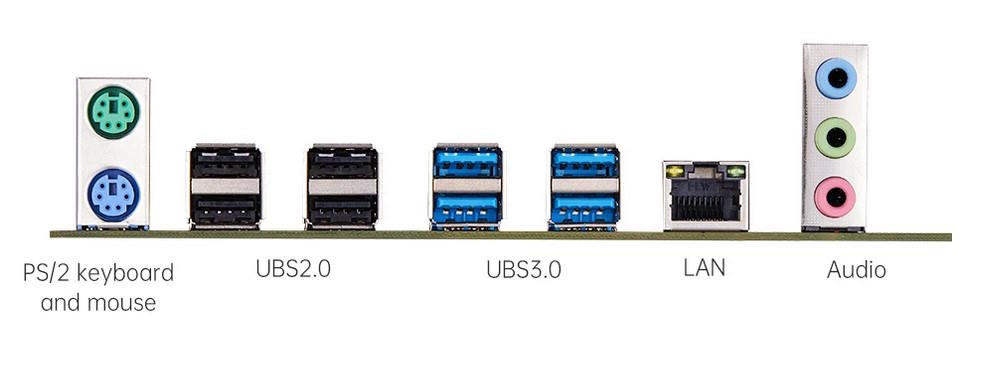

| PS/2 Ports | 2 (mouse + keyboard) |
| USB 3.0 Ports | 4 (+ front panel support) |
| USB 2.0 Ports | 4 (+ front panel support) |
| Network | Gigabit LAN (RTL8111 \ RTL8168) |
| Audio | 5.1 channel (ALC897) |
| Bios Chip | W25Q128FV |

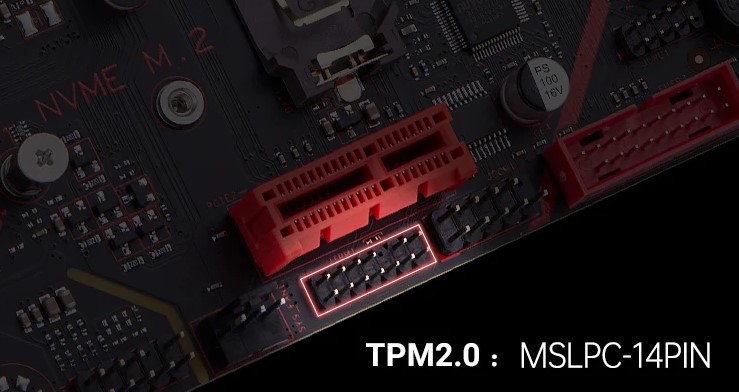

| TPM 2.0 header | LPC 14 Pin |
| Form Factor & Dimensions | mATX 215 x 190 mm |
| Approximate Price | $40 - $50 (Aliexpress) |

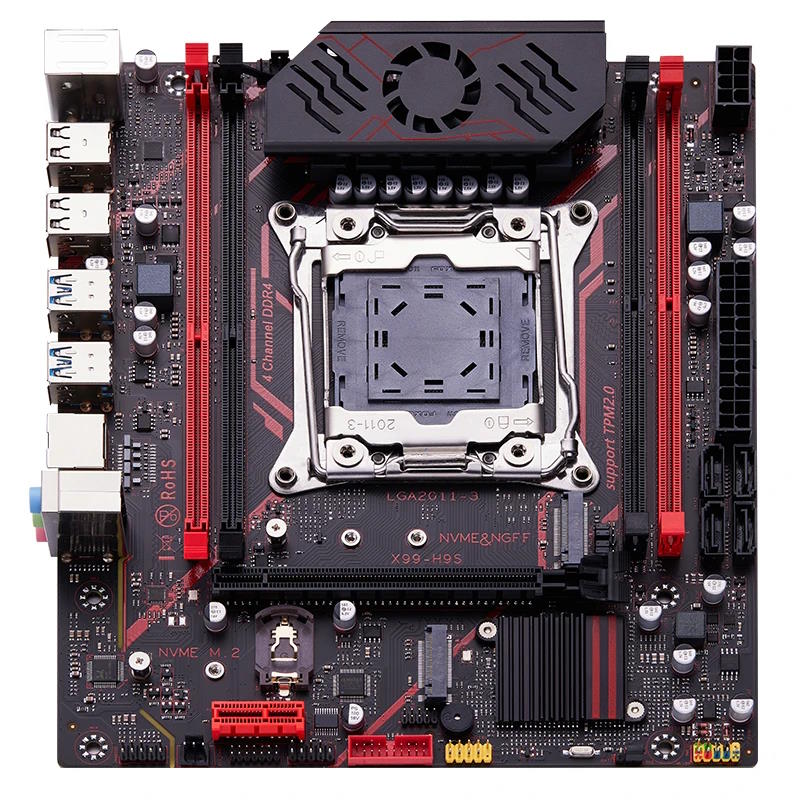

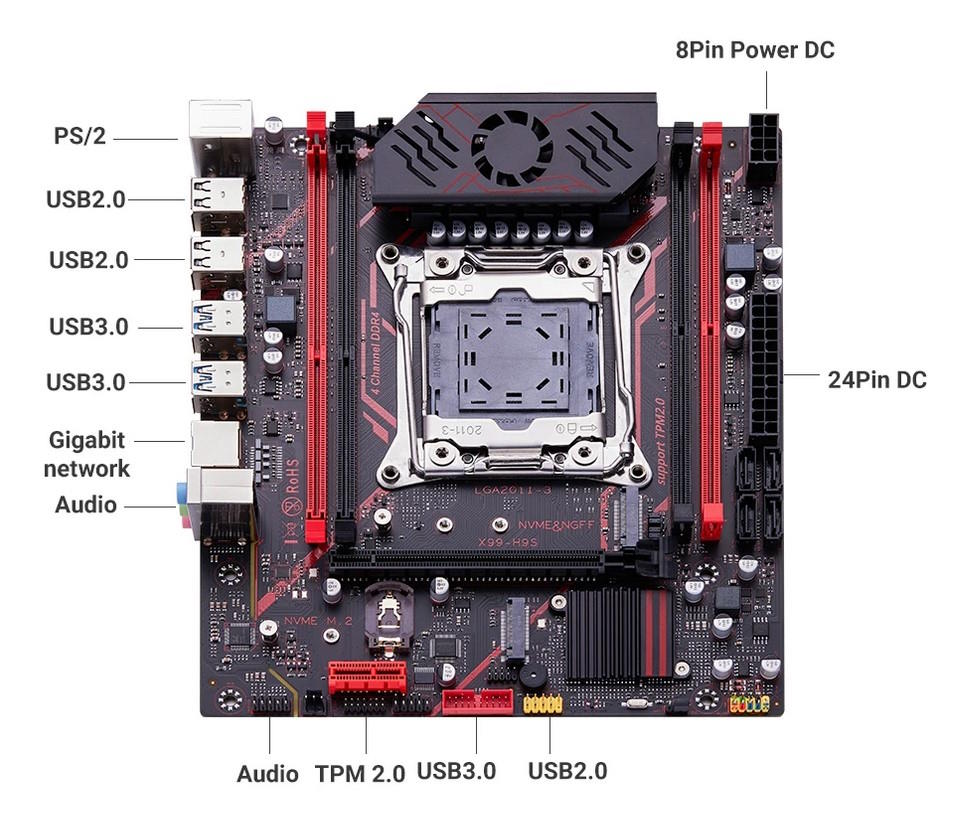

The board comes in a black‑and‑red color scheme and, visually, doesn’t differ much from many other Chinese X99 boards. Clear advantages include the server C612 chipset, quad‑channel memory support, and a power delivery subsystem with active VRM cooling.

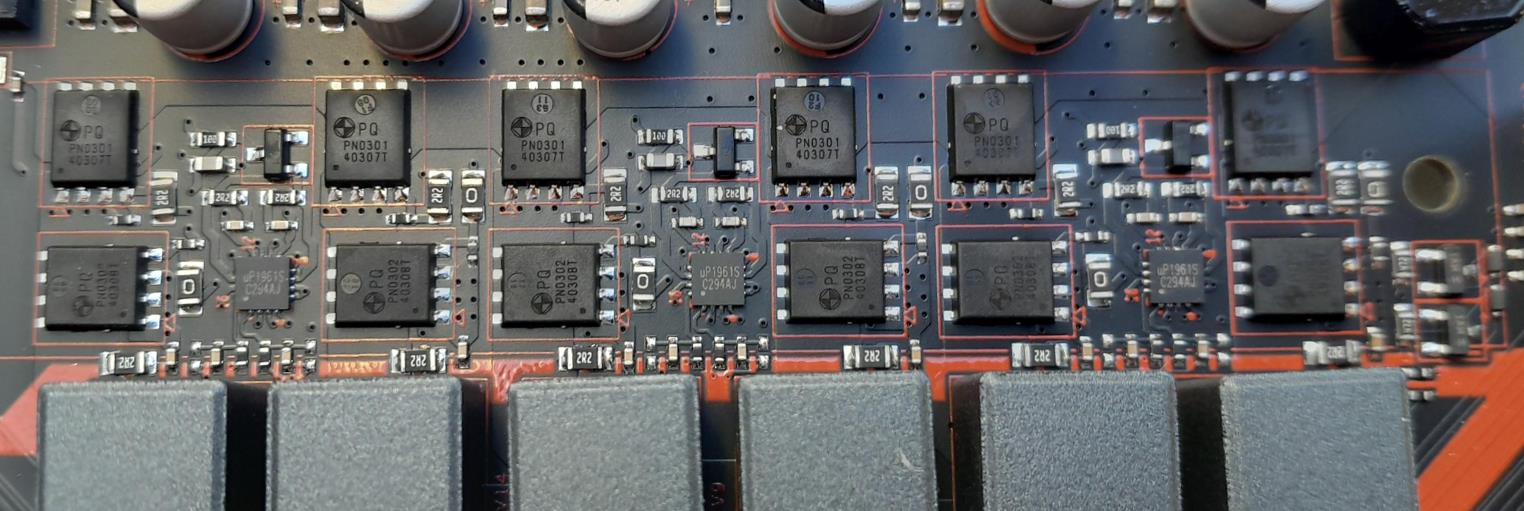

The power delivery uses 6 “virtual” phases, each with two MOSFETs. It employs uP1961S MOSFET drivers (x4), a UP1649Q PWM controller, and MOSFETs labeled PQ PN0301 (x6, high‑side) and PQ PN0302 (x6, low‑side). We couldn’t find exact specifications for these MOSFETs, but this configuration should handle mid‑range CPUs (TDP around 120–130 W) without issues. If you use a CPU with TDP under 100 W, you can disable the active VRM cooling.

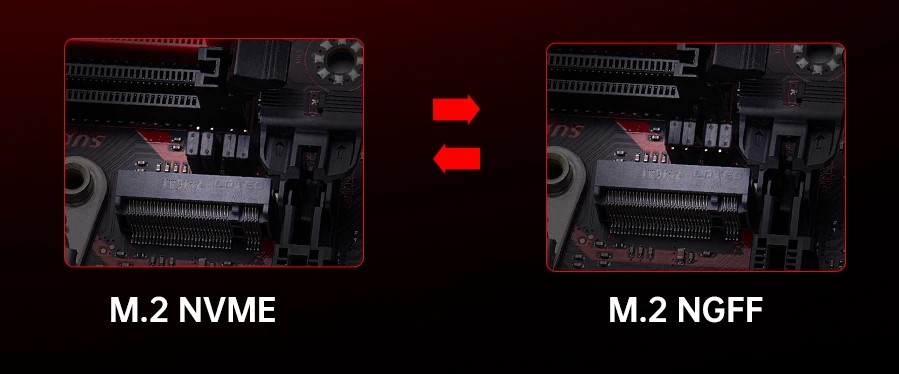

Storage connectivity includes 4 SATA III ports and two M.2 slots, one of which can operate in either NVMe or NGFF mode. The mode is switched via jumpers located to the right of the slot.
Other positives include the decent ALC897 onboard audio, a built‑in speaker (not as loud as usual), a sufficient number of USB 3.0 ports, and overall solid build quality. Downsides: few fan headers, no sleep (S3) support, and an energy/power sensor that reports incorrect readings.
BIOS Capabilities

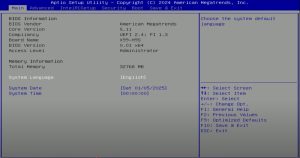

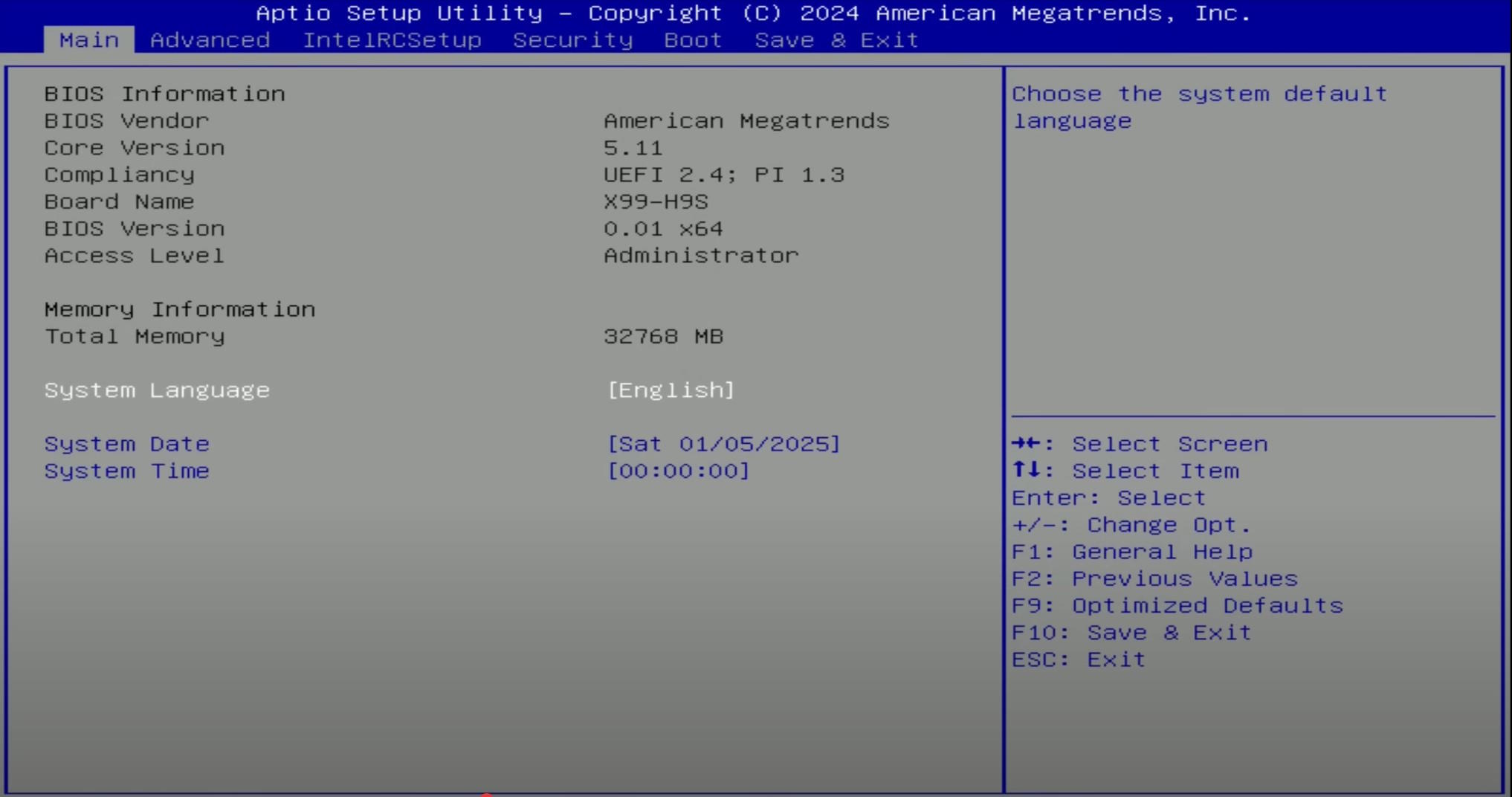

The stock firmware is this model’s strong point. The BIOS is based on American Megatrends code; it doesn’t have a modern GUI, but it does include nearly everything you need—from memory timing controls to ReBAR support. Basically, the only thing you might want to add is TBU for v3 processors; if you’re using v4 CPUs, there’s no need to change the firmware at all. That’s definitely a plus for many users.
Simple BIOS Flashing Guide (Windows)
| BIOS version & date | Ram Timings | ReBAR | Unlocked CPU OC | Turbo Boost unlock | Undervolt | Secure Boot | Notes & Link |
|---|---|---|---|---|---|---|---|
| Ver:001 03/22/2024 16:53:39 | + | + | - | - | - | + | Stock BIOS [Download] |
| Ver:001 03/22/2024 16:53:39 | + | + | - | + | -50 mV | + | Stock BIOS + TBU [Download] |
| Ver:001 03/22/2024 16:53:39 | + | + | + | - | - | + | Stock BIOS with overclocking capability for unlocked CPUs [Download] |
- Download FPTW 9.1.10 from this page.
- Open Command Prompt as Administrator.
- Copy your BIOS file (
bios.binorbios.rom) into the same folder as FPTW. - In the Command Prompt, navigate to the FPTW folder using the
cdcommand. - Flash the BIOS with the following command:
fptw64 -f bios.bin
Note: Replace bios.bin with the actual name of your modded BIOS file, if it’s different.
After flashing, we recommend performing a settings reset.
Frequently Asked Questions
The board won’t boot, black screen, etc. What should I do?
See our article about the most common LGA2011-3 issues.
Where can I find drivers for this board?
The page with current drivers for socket 2011-3 boards is located here.

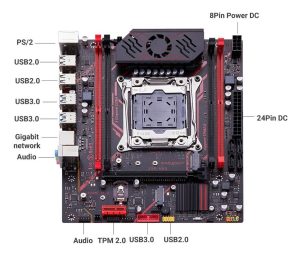

How do I connect the front panel?
Conclusion
The Qiyida X99 H9s is a decent board that’s definitely worth a look. Chinese engineers are finally adding TPM 2.0 module support to the X99 platform. Besides that, it has almost everything you need: sensible stock firmware, a reasonable power delivery design, quad‑channel memory support, and good overall quality.
