JieShuo X99 JS12 Review

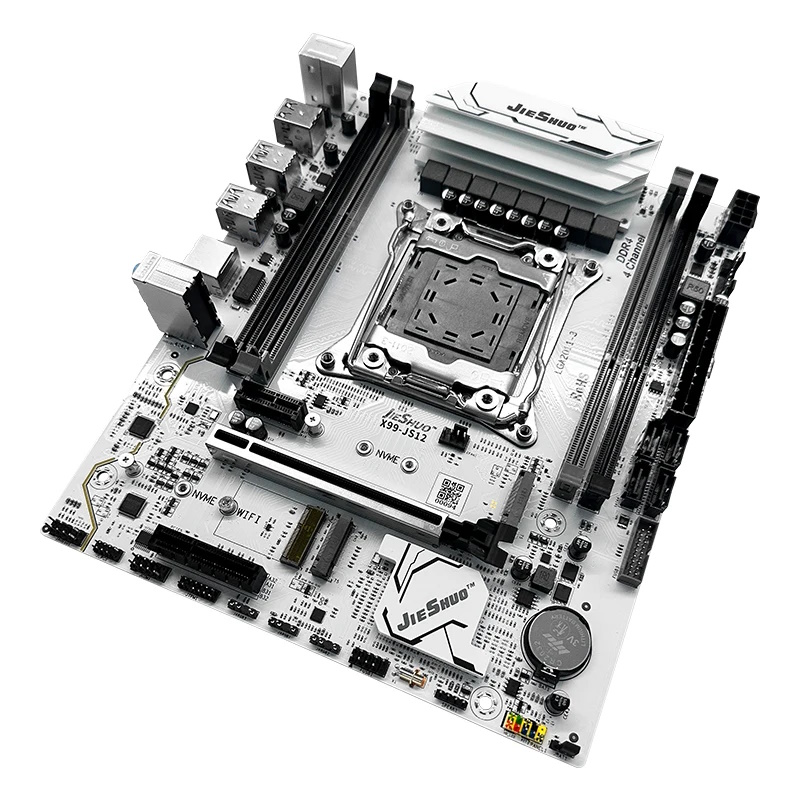

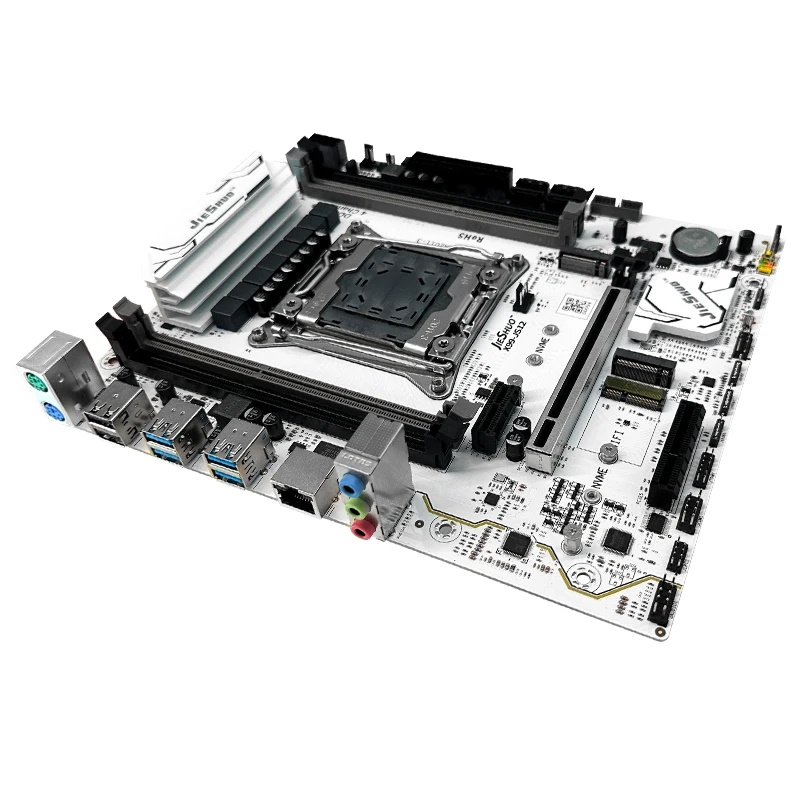

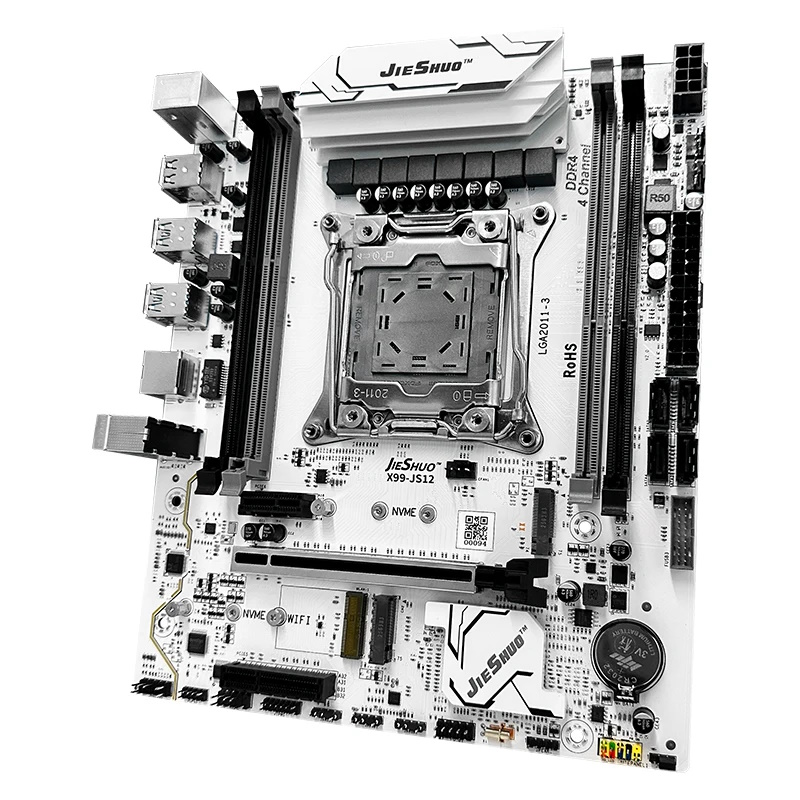

JieShuo X99 JS12 is a near‑clone of the JGINYUE X99M GAMING D4/ARGB board we’ve already reviewed. It’s a solid model with an excellent VRM, an integrated ARGB controller, and support for TPM 2.0 modules.

Let’s look at what to expect from JieShuo’s version and whether it’s worth considering in 2026.

Specifications

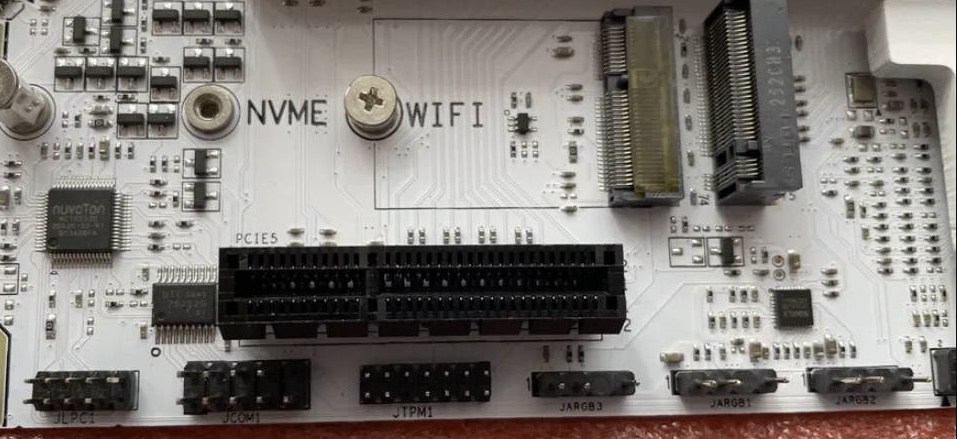

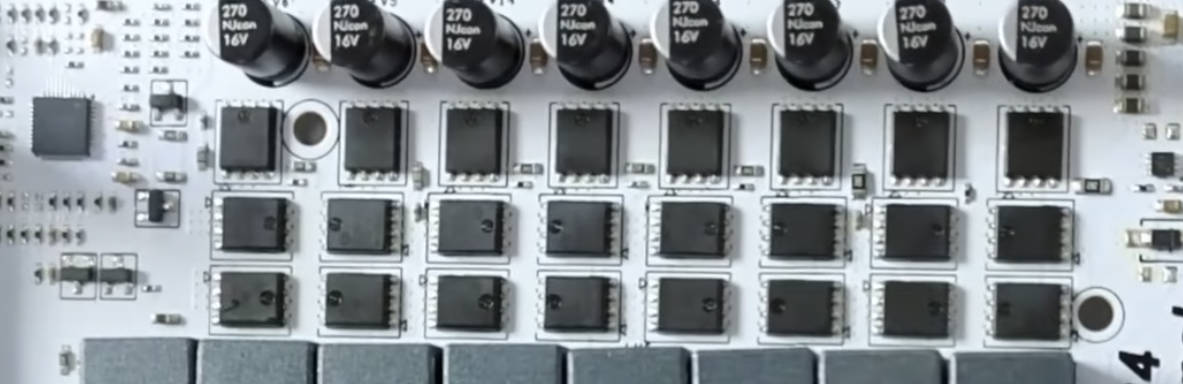

All the key features are here: a strong VRM, an integrated ARGB controller, the server‑grade C612 chipset, and TPM 2.0 support. On closer inspection, however, it doesn’t replicate the JGINYUE board entirely—there are small differences. You get three ARGB headers instead of five; a few components use slightly different color accents; and two SATA III ports are shifted slightly. Most notably, our sample uses an XMC BIOS chip instead of the more common Winbond chip seen on the JGINYUE version.

Aside from these minor differences, the designs are effectively the same—and they inherit the same downsides: no working sleep (S3) mode, a CPU power‑consumption sensor that significantly under‑reports, and the usual firmware quirks.

DDR3 version

A DDR3 variant also exists for CPUs whose memory controllers can operate with both DDR4 and DDR3.

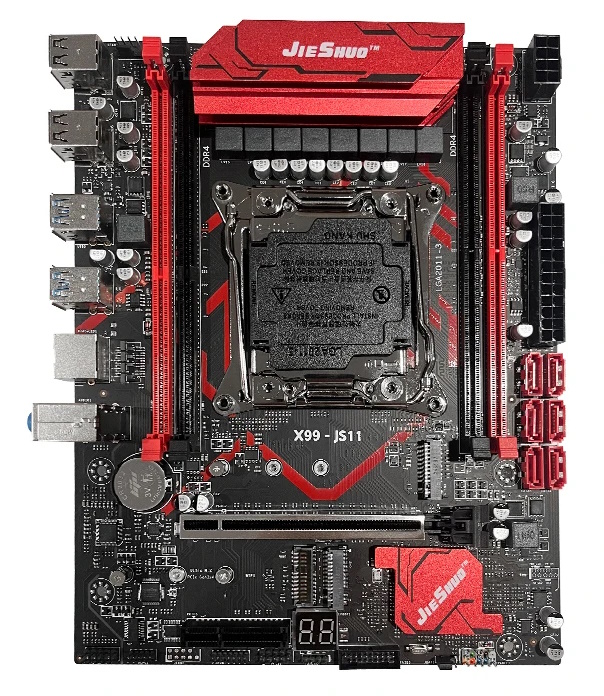

This version is called JieShuo X99 JS11, but be careful: there is another distinct model sold under this brand with the same name.

BIOS Capabilities

The stock firmware appears effectively identical to JGINYUE’s BIOS. You get about as complete a feature set as these boards offer: memory‑timing controls, Above 4G Decoding and Resizable BAR, working Secure Boot, and TPM 2.0 configuration. Smart Fan control is available only for 4‑pin headers. As usual, the firmware exposes many options, but some simply don’t work. You’ll also encounter familiar quirks: a nonfunctional motherboard temperature sensor (seeing ~100 °C is normal) and power‑consumption telemetry that reads far below actual values.

Simple BIOS Flashing Guide (Windows)

We’re still looking for the native JieShuo BIOS. The JGINYUE BIOS appears cross‑flashable on this board, but proceed at your own risk.

1. Download Intel Flash Programming Tool (FPTW) 9.1.10 from this page.
2. Open Command Prompt as Administrator.
3. Copy your BIOS file (bios.bin or bios.rom) into the same folder as FPTW.
4. In Command Prompt, navigate to the FPTW folder using cd.
5. Back up first: fptw64 -d backup.bin
6. Flash the BIOS: fptw64 -f bios.bin

Notes: Replace bios.bin with the actual file name. If FPT reports that it cannot access parts of the BIOS, reboot, enter BIOS setup, and disable write protection (IntelRCSetup → PCH Configuration → Security Configuration → BIOS Lock: Disable).

After flashing, we recommend resetting settings or clearing CMOS.

Must-have Tool

If you experiment with BIOS or work with computer hardware, there’s one tool worth keeping close at hand — the CH341A programmer. It allows you to directly read and flash SPI BIOS chips, often saving motherboards after a failed update.

🛒 Check current price

Frequently Asked Questions

How do I connect the front‑panel header?

The board won’t boot, black screen, etc. What should I do?
See our article about the most common LGA2011‑3 issues.

Where can I find drivers for this board?
The page with current drivers for socket 2011‑3 boards is located here.

Where is the BIOS chip located?
To the right of the chipset heatsink.

Which TPM 2.0 module is compatible with this board?
You need an MSI 14‑pin LPC TPM 2.0 module—for example, this one.
